Stand-alone version data processing software:
The PC-side software can import test data from the U disk, and the heat transfer coefficient and thermal resistance can be calculated through the software. Data can be saved in Excel, html or txt format. Curved X-ray graphics can be saved as pictures, statistical reports of measurement data can be generated, reports can be printed and exported, etc.
Remote cloud platform:
The host comes with a 4G communication module, and the measured data will be sent to
the cloud platform at intervals of 5 minutes, and the user enters the website through the PC to log in to the platform.

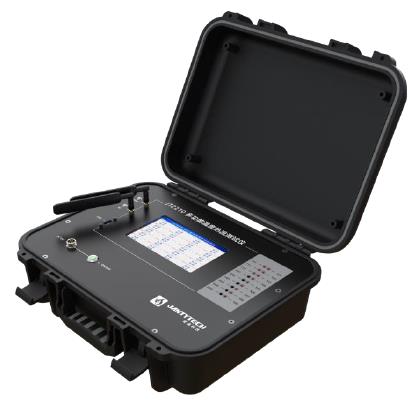

The PC software supporting JT2210 has professional statistical analysis functions, heat transfer coefficient thermal resistance calculation functions, etc. It complies with the steady-state and dynamic calculation methods stipulated in the standard JGJ/T 357-2015 "Technical Regulations for On-Site Testing of Heat Transfer Coefficient of Enclosure Structures", and can generate test reports, output curves and spreadsheet data.
JT2210 has the function of 4G remote transmission. Jiantong Technology provides cloud platform services. After registration, users can remotely view and download test data, and can perform statistical analysis and calculation.

project	parameter
Accessibility	Wired sensors: 12pcs temperature sensors and 6pcs heat flow sensors; Wireless sensor (optional): 6 temp-heat flow modules, 6 temp wireless modules
size	430x340x165mm
storage	External U disk storage, cycle 1~60min can be set
show	Color touch screen, 7 inches, resolution 800×480 pixels
battery life	>48 hours (storage once every 5 minutes, remote wireless work once every hour)
way of communication	The sensor → Host with Zigbee The Host → cloud platform with 4G
Power supply	DC12V/built-in lithium battery
use environment	-10~50℃

project	parameter
storage	More than 20000 groups
wakeup interval	20s~60min
power consumption	>96 hours (5 minutes storage interval)
communication	Zigbee
temperature test	Range -20~85°C; Resolution 0.1°C; Accuracy ±0.5°C
heat flow test	Range -2000~+2000W/m2; resolution 0.1W/m2; accuracy ±5% of reading

project	parameter
storage	More than 20000 groups
wakeup interval	20s~60min
power consumption	DC5V; battery life > 1 month (recorder mode, wireless off)
communication	Zigbee
temperature test	Range -20~85℃; resolution 0.1℃
temperature accuracy	±0.5℃
resolution	0.1°C
